The UFEGW and Management Console are now available in a demo1 Docker container!

In the demo you can ...

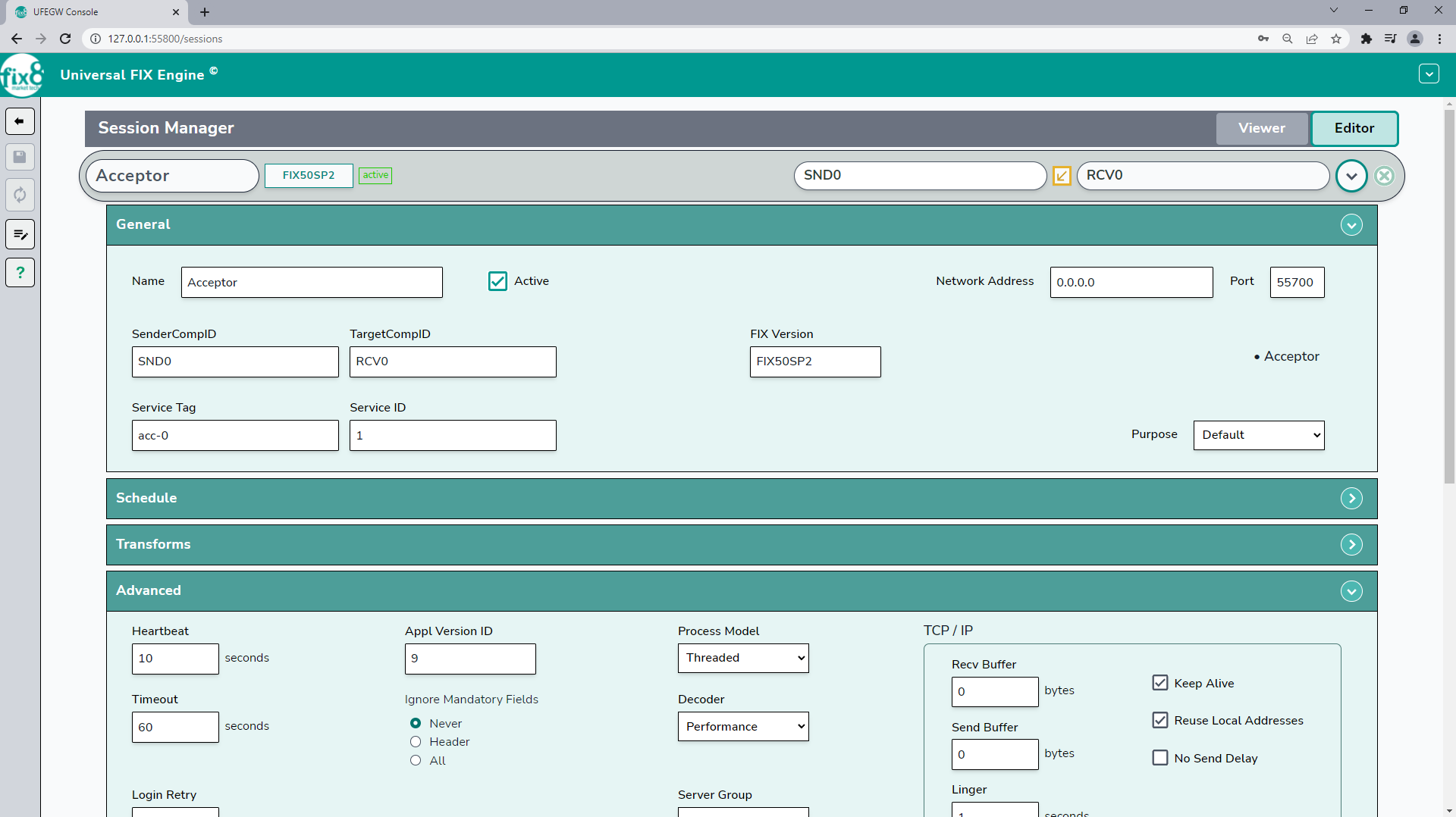

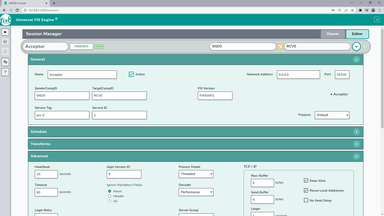

  • Set up your own custom FIX sessions using our Universal Fix Engine© Gateway (UFEGW)

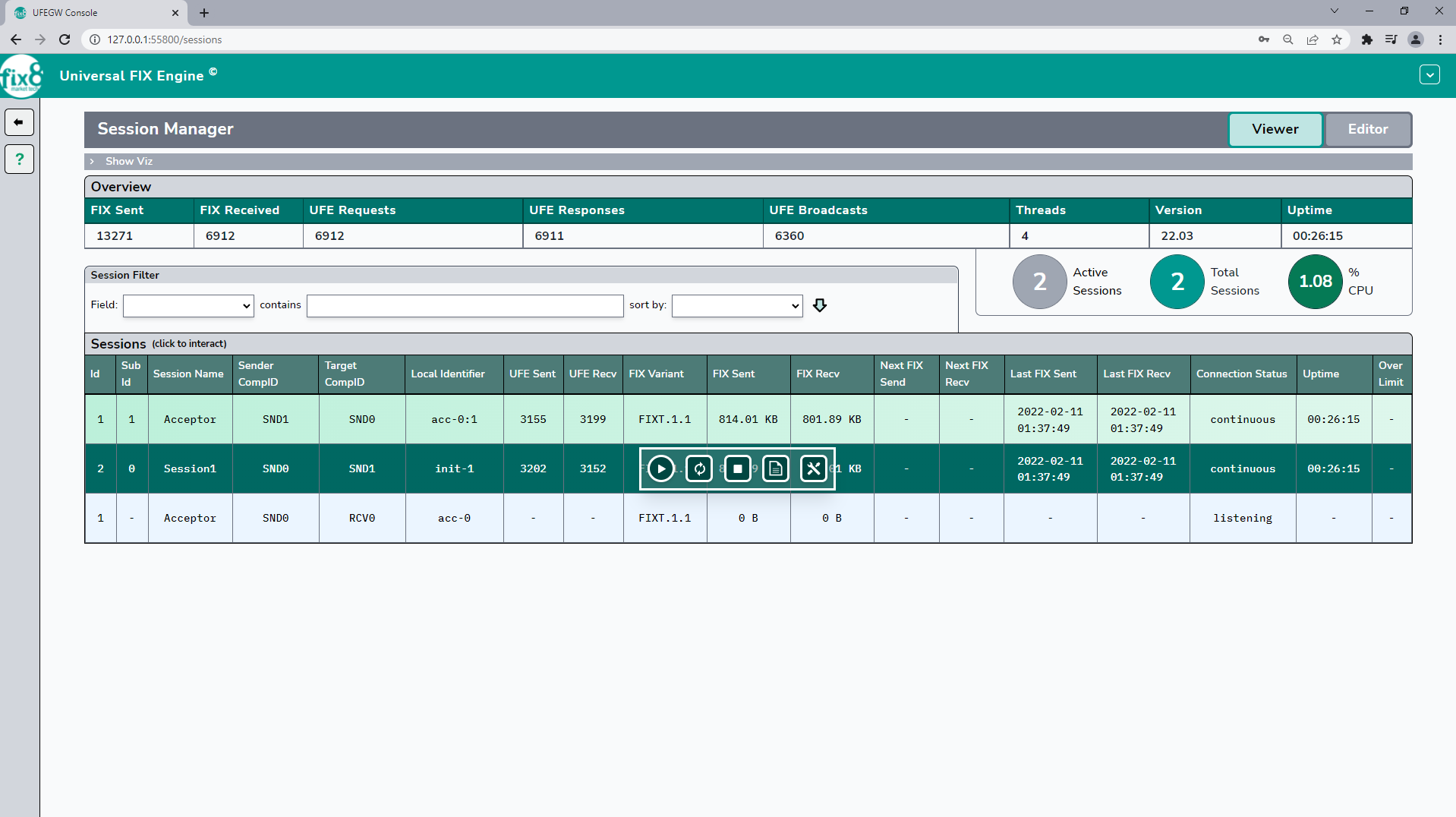

  • Monitor and interact with your sessions in the dashboard views

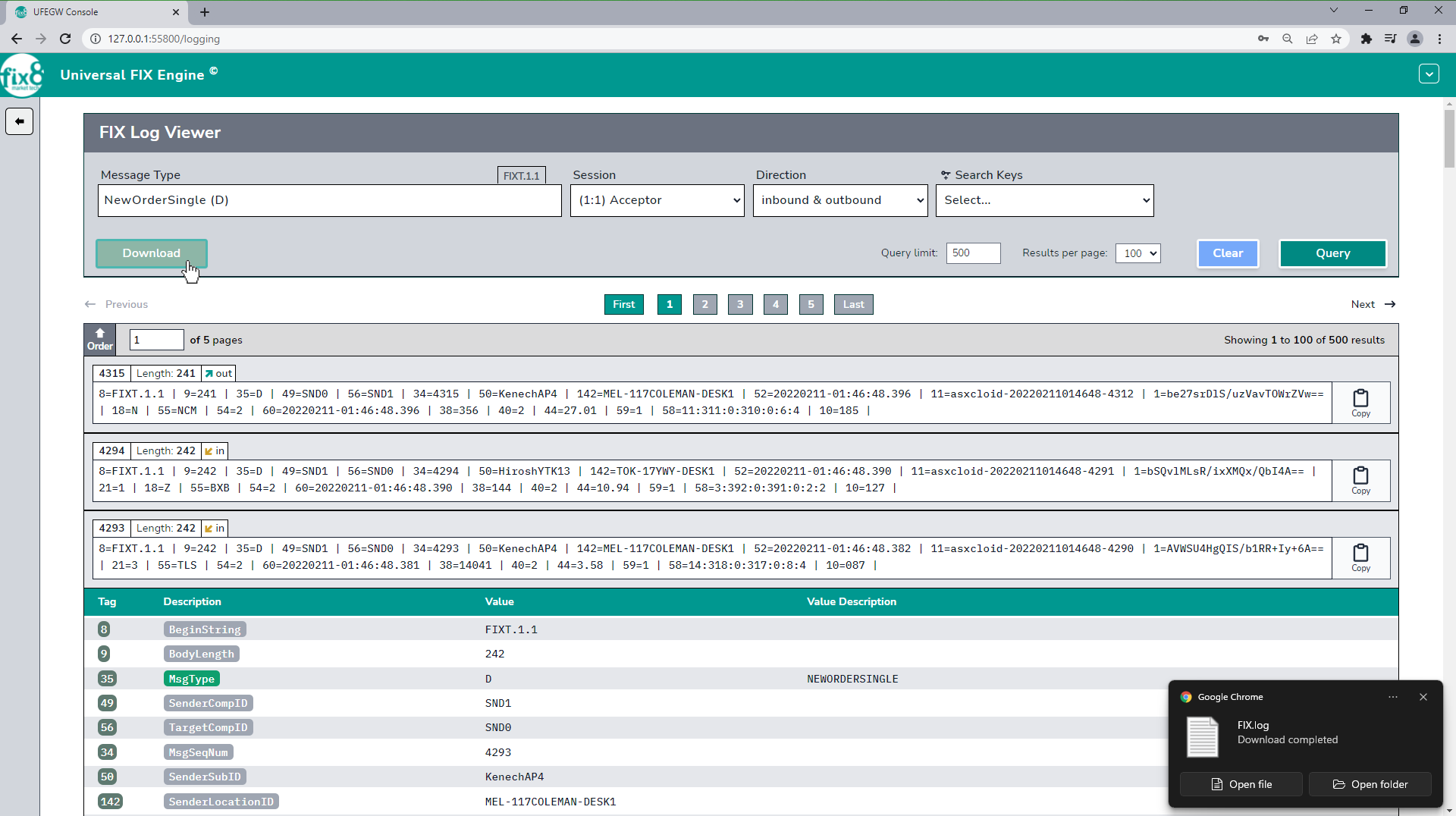

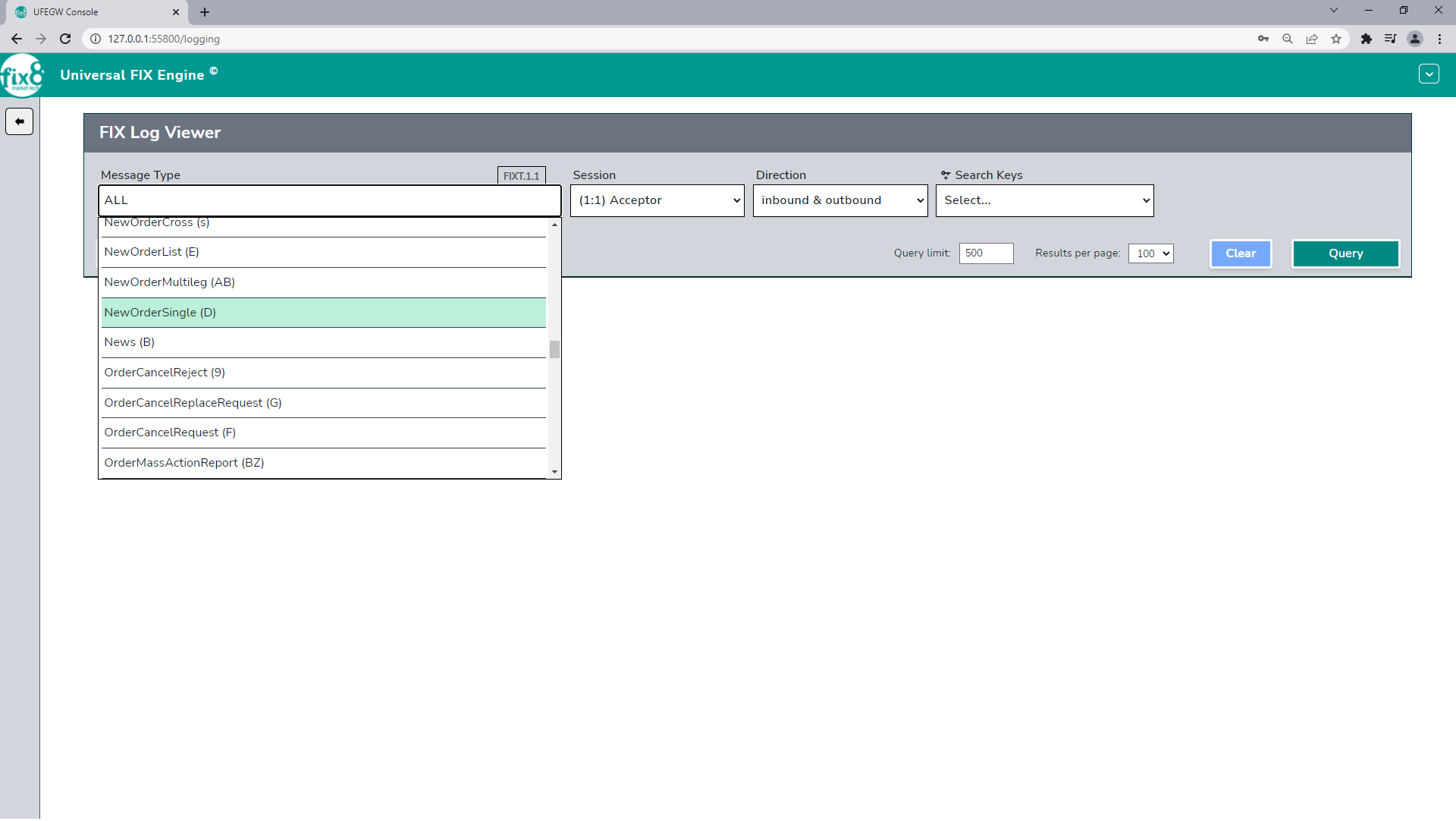

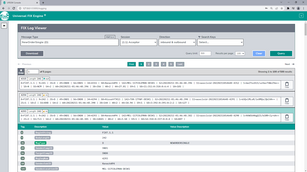

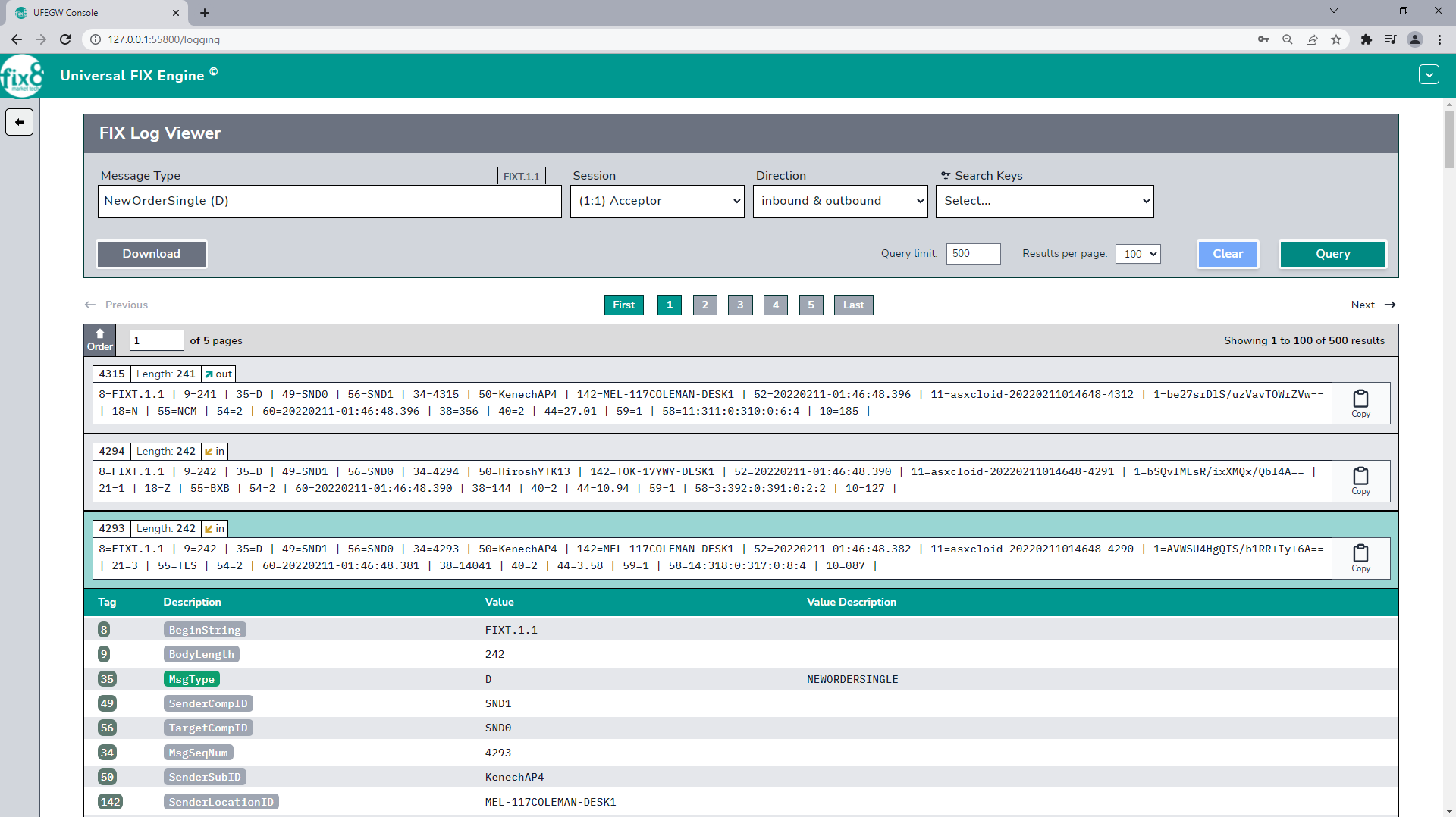

  • Query your FIX sessions with the graphical FIX log viewer
  • Create server configurations from scratch, or from provided templates
  • Download logs
  • Perform user management
  • Small Docker Logo

    Demo Container

    The UFEGW and Management Console are now available in a demo1 Docker container!

    In the demo you can ...

  • Set up your own custom FIX sessions using our Universal Fix Engine© Gateway (UFEGW)
  • Monitor and interact with your sessions in the dashboard views
  • Query your FIX sessions with the graphical FIX log viewer
  • Create server configurations from scratch, or from provided templates
  • Download logs
  • Manage users

  • 1. Quick Start

    The demo runs in a Docker command that has two custom user values and requires two ports to be available:

    Set
    To
    [LOCAL_DIR]The directory where the command is run
    [HOST_IP]The network address of the container host
    Open Ports55800, 55810

    Substituting for the above values, run:

    shell

    docker run --name=ufegw --network=host --volume [LOCAL_DIR]:/var/lib/redis --env HOST_IP=[HOST_IP] fix8mt/ufegw:latest

    For example:

    shell

    docker run --name=ufegw --network=host --volume /opt:/var/lib/redis --env HOST_IP=192.168.0.76 fix8mt/ufegw:latest

    After loading, the demo frontend will serve to:

    browser

    http://[HOST_IP]:55800

    In our example:

    browser

    http://192.168.0.76:55800

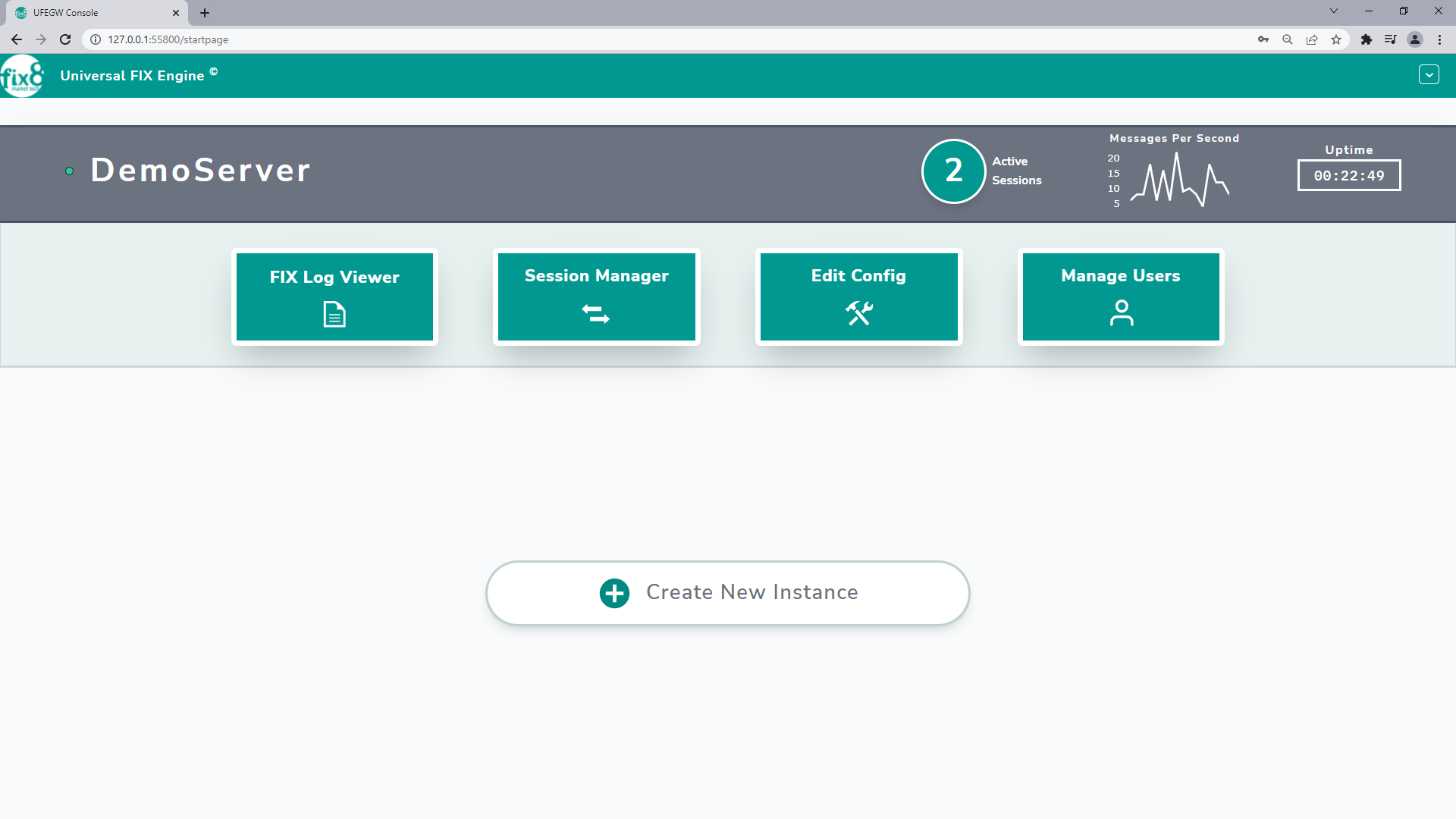

    The demo is bundled with its own internal documentation. When the start page has loaded, the

    Starter Guide

    button will appear in the top right of the screen. Click this to read an introductory tutorial on the demo's functionality.

    2. Deployment

    The demo offers a graphical front end as well as other functionality for user code and components.

    This functionality is delivered through various ports in the demo container. By default these ports are in the range 55700-55851:

    PortServiceNotes
    55800
    ufe-gui-clientThese ports are used by the demo's graphical frontend to serve information to the browser.
    55810
    ufe-gui-server
    55700
    acceptor The demo restricts the user to 2 FIX sessions. By default, one is an acceptor session running on port 55700, the other is an initiator session which points to 55700. These sessions can be customised by the user using the demo frontend.
    -> 55700
    initiator
    55745
    publisher These UFEGW ports can be accessed via our adaptor plugins listed on the Adaptor API page.
    55746
    responder
    55747
    subscriber
    55748
    requester
    55749
    log-publisher
    55850
    log persister (psql)These ports can be used to access raw log data (via a psql server endpoint) or the current server config.
    55851
    config

    Please ensure that ports corresponding to the above services are made available to the network.

    The demo is designed for deployment on Docker for Linux.

    If you wish to run the container over a network using SSH portforwarding, it is important to specify the HOST_IP as the localhost of the machine, e.g.:

    shell

    docker run --name=ufegw --network=host --volume /home/user:/var/lib/redis --env HOST_IP=127.0.0.1 fix8mt/ufegw:latest

    Connecting to the machine would still require using the network IP, eg:

    browser

    ssh -fNTg user@[NETWORK_IP] -L 55800:localhost:55800 -L 55810:localhost:55810

    3. Troubleshooting

    1. I can't log in to the demo via the local machine where the demo is running and/or via the network

    This is usually due to incorrect networks settings. Check you have specified the correct network HOST_IP in the Docker command. Ensure that all the relevant ports are made available for the machine on the network. The UFEGW Console uses ports in the range 55700-55851. Ports 55850 and 55851 are essential for operating the web app component on the network.

    2. Something isn't behaving as expected, what do I do?

    Please contact us!

    You can email us at heretohelp@fix8mt.com, or submit a message.

    From the Console you can download the application logs - these can be retrieved from the About screen in the demo, or on the front (login) page of the demo by pressing ctrl+d and clicking DEBUG. When you have retrieved the logs send them through to the email address above.

    4. Gallery

    1.The demo container is limited to 2 configurable FIX sessions and 2 hours of operation
